Machine features
1. Detachable machine bed. Easy to move.

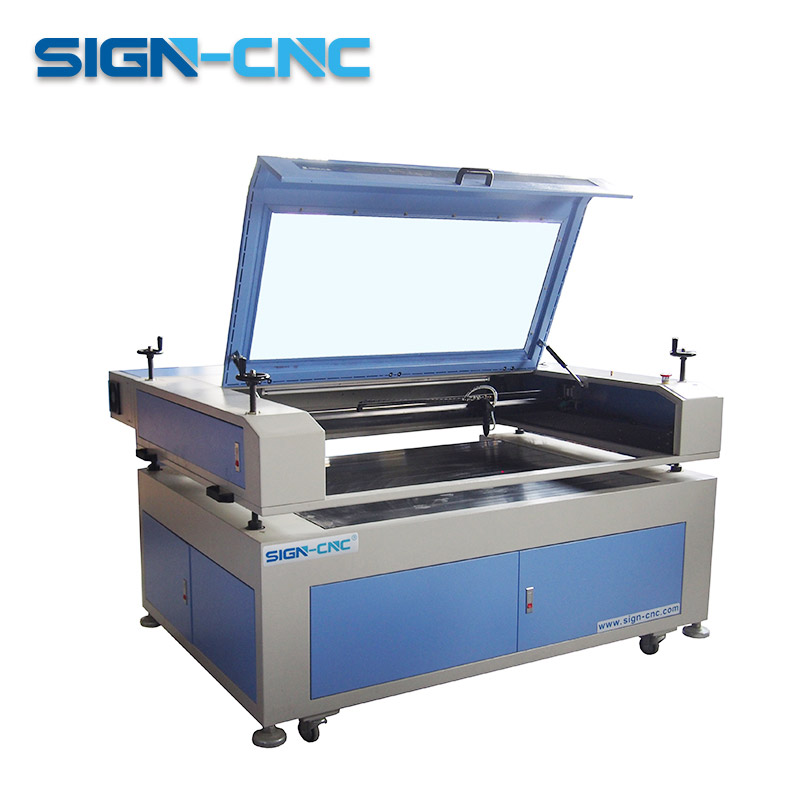

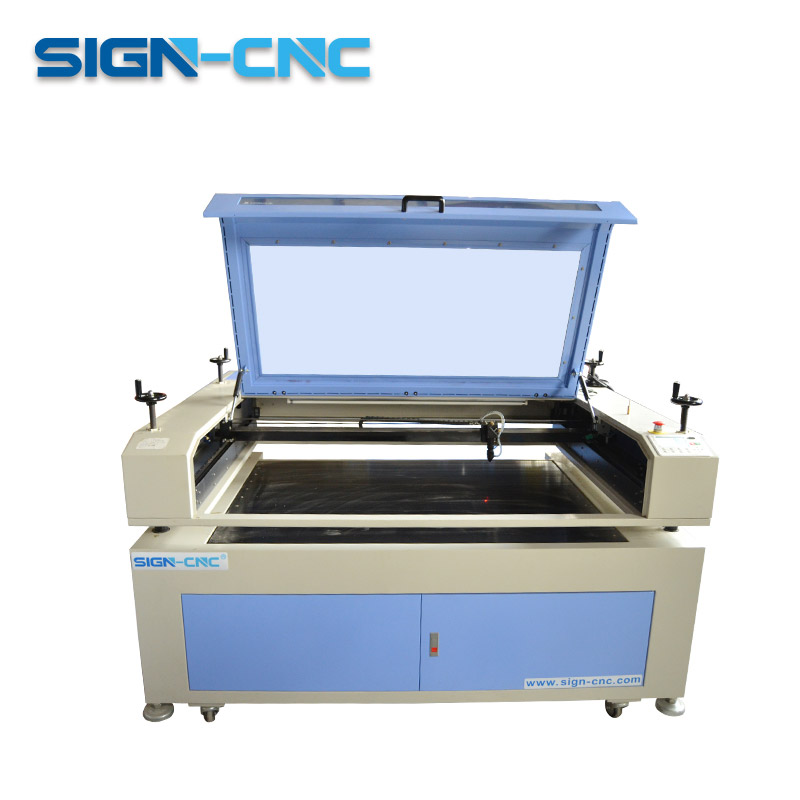

2. SIGN-1060 1390 CO2 laser stone engraving machine, are mainly used to engrave on stone. like marble, granite etc.
3. Widely applied in craft gifts, souvenir, tombstone, advertising signs, and many other industries.
4. Machine working size can be selected according to your needs.
5. Customization is supported.
| Model | SIGN-1060, SIGN 1390 |
| Cutting area | 1000*600mm/ 1300*900mm |
| Laser power | Reci 80w/90W/100W/150W |
| Driving system | Stepper motor |
| Laser type | CO2 sealed laser tube , water cooling |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-40000mm/min |
| Laser output | 0-100%software setting |
| Resetting positioning accuracy | ≤±0.01mm |
| Power supply | 220v/50hz |
| Operating temperature | 0 degree -45 degree |
| Operating humidity | 5-95% |
| Min shaping character | English 1.0*1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | TAJIMA, CoreIDraw, Photoshop, AutoCAD |
| Volume | 3.3CBM/ 4.6CBM |
| Gross weight | 400KGS/ 550KGS |
| Warranty | Two years |
Application materials
| Materials | Engrave | Cut |
| Acrylic | √ | √ |
| Wood | √ | √ |
| MDF | √ | √ |
| Die board | √ | √ |
| Plywood | √ | √ |
| Textiles | √ | √ |
| Leather | √ | √ |
| Rubber | √ | √ |
| Paper | √ | √ |
| PVC | √ | √ |
| Glass | √ | × |
| Stone | √ | × |
| Steel | × | × |
Machine packing list
| No. | Item | Description | Amount |
| 1 | Machine bed | Welding bed | 1 SET |
| 2 | Worktable | Blade worktable | 1 SET |
| 3 | Ruida card | Control system | 1 SET |
| 4 | Laser tube | Produce laser | 1 PC |
| 5 | Laser source | Power supply | 1 SET |
| 6 | Reflect lens | Reflect laser from laser tube to laser head | 3 PCS |
| 7 | Focus lens | Focus laser | 1 PC |
| 8 | Laser head | Engraving and cutting materials | 1 PC |
| 9 | Exhaust fan | Exhaust smoke | 1 SET |
| 10 | Water chiller CW3000/ water pump | Cooling the laser tube | 1 SET |
| 11 | Belt | Transmission | 1 SET |
Optional:
1. Red dot
For finding the light
2. Auto focusing
Machine adjusts the focal length automatically before engraving and cutting, which replaces manual focusing, improving working efficiency.
Packing
First of all, we brush the guide with oil to protect it from rust.
Second, packing the machine with film against damaging the surface.
Third,machine covered with wooden case to provide all-sided protection.
Services
1. Two years warranty. Broken parts that due to quality problem during warranty, we provide free replacement.
2. Control system CD for software in English and with manual.
3. 24 hours technical supported. Call, email, skype, whatsapp, wechat and so on.
4. Free training （In factory）
5. Engineer available to service machinery overseas
6. Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts discounted / agent price for you.
FAQ
1. Can this machine cut marble?
It only can engrave on it. If you need to cut, you can choose our CNC router.
2. What's the depth it can engrave?
It depends on your materials and power.
3. What' advantage of Detachable machine bed?
This machine is more small, better for small space.
4.How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
